JBL NANO 355 Professional AMP

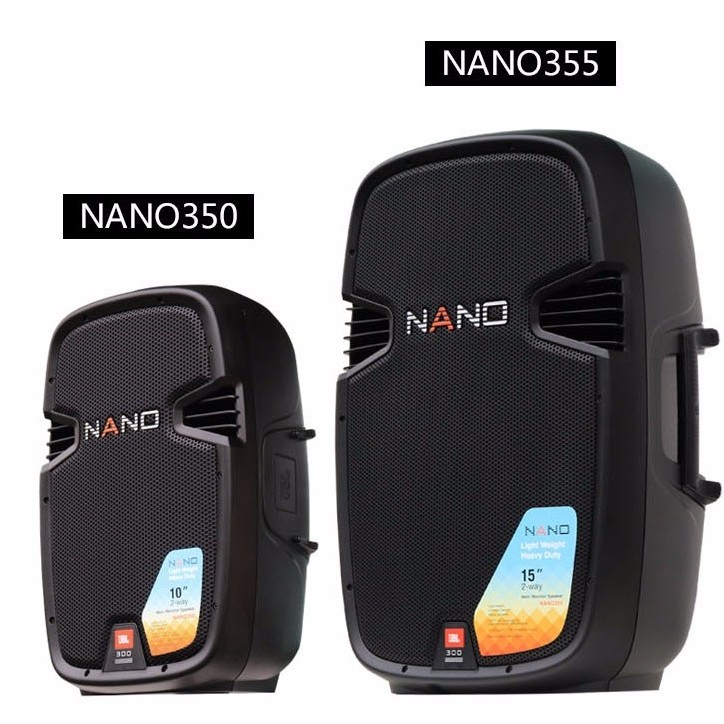

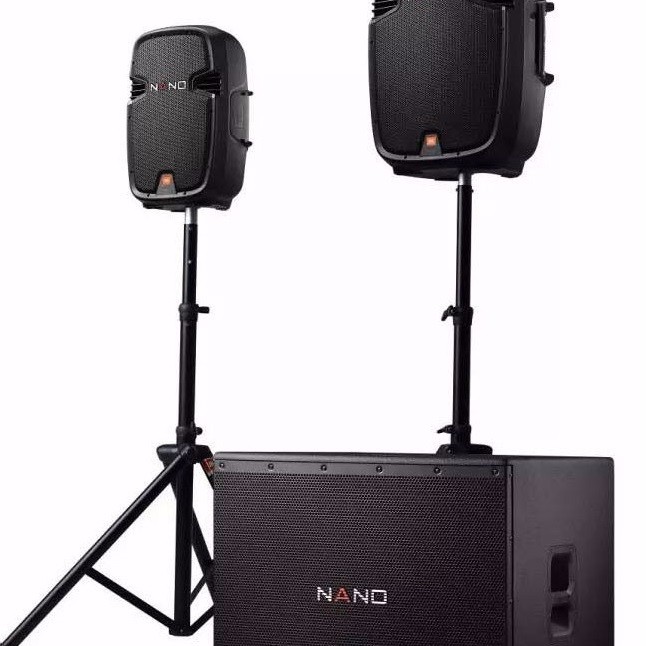

NANO300 Series is a set of professional speakers developed by JBL for sound reinforcement for live performance, band gigging or small concert, and contains three models: NANO350 (10-inch two-way passive speaker), NANO355 (15-inch two-way passive speaker) and NANO358SP (18-inch powered subwoofer).

Equipped with premium JBL transducers and 100°×60° (H×V) waveguide, NANO350 and NANO355 are capable of reproducing musical pick-ups with great accuracy and forming a well-balanced audience coverage. Both the two models are under protection of JBL SonicGuardTM technology, leaving users out of the worries of overload.  Their enclosure, built from PP impact copolymer, is compact and easy to transport. Arc-shaped edges, multiple M10 suspension points and one 36mm pole-mounting socket, NANO350 and NANO355 can be installed in different ways for use as a main or monitor speaker.

NANO358SP powered subwoofer uses an 18-inch high-power and long-excursion LF transducer and delivers extended low frequency with the lowest distortion. The subwoofer provides four crossover presets (80Hz, 100Hz, 120Hz & NANO (default)) for users to choose from while facing different sound amplification situations.

Portable Passive 15" Two-Way Speaker

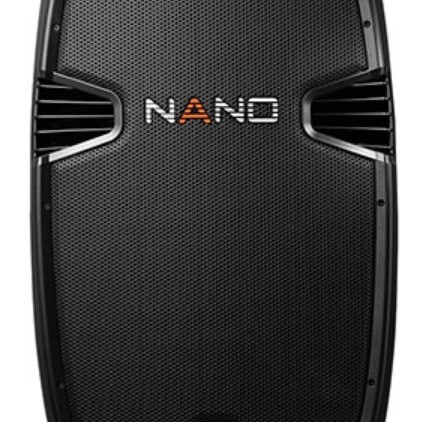

JBL NANO355 is a 15-inch, 2-way passive speaker system designed for multi-purpose portable applications. The NANO355 is comprised of a premium 15-inch (380 mm) woofer and a 1-inch (25.4mm) polymer diaphragm high frequency compression driver coupled with a 100° × 60° (H × V) coverage waveguide. The compact system is capable of handling 350 watts continuously and 1400 watts peak. The NANO355 is embedded with an advanced network, for extremely consistent on- and off-axis performance. The SonicGuardTM protection circuitry prevents the high frequency compression driver from excess power without compromising the system’s performance. Dual Neutrik® NL4/¼” combo connectors allow adding additional systems in parallel. The NANO355 features ultra light weight and true portability and is designed for versatile uses. The three ergonomic soft-touch handles make it easy to lift and transport. The angled enclosure, multiple M10 suspension points and a 36-mm pole socket highly increase the system’s utility as either main or monitor speaker. Rugged copolymer enclosure and screen-backed steel grille further adds durability of the entire system.

FEATURES

∧

Multi-angle enclosure for main or monitor applications

Ultra light weight, extremely compact and highly portable

JBL premium HF and LF drivers for high-precision acoustic reproduction

100° × 60°(H × V) asymmetrical waveguide from uniform audience coverage

SonicGuardTM HF protection circuit

Soft touch top grip for easy handling

Multiple M10 suspension points for easy and safe rigging

Integrated 36 mm pole mount socket with stabilizing securing screw

Highly designed composite enclosure for durability, lightweight, and portability

APPLICATIONS

^

Sound reinforcement for live performance, band gigging, small concert

SPECIFICATIONS

^

System Type 15”, 2-way, bass-reflex design

Frequency Range (-10 dB) 38 Hz - 20 kHz

Frequency Response (-3 dB) 50 Hz - 18 kHz

Coverage Pattern 100° × 60°(H × V)

Directivity Index (DI) 9 dB

Directivity Factor (Q) 8

Crossover Frequency 2.3 kHz

System Power Rating

(Continuous/Program/Peak) 350 W/700 W/1400 W

Sensitivity (1w/1m) 98 dB

Maximum SPL 130 dB

Nominal Impedance 8 ohms

LF Driver 1 × 15” (380 mm) woofer

HF Driver 1 × JBL 2414H 1” (25.4 mm) polymer diaphragm compression driver

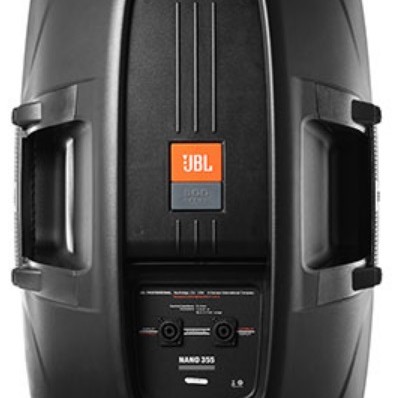

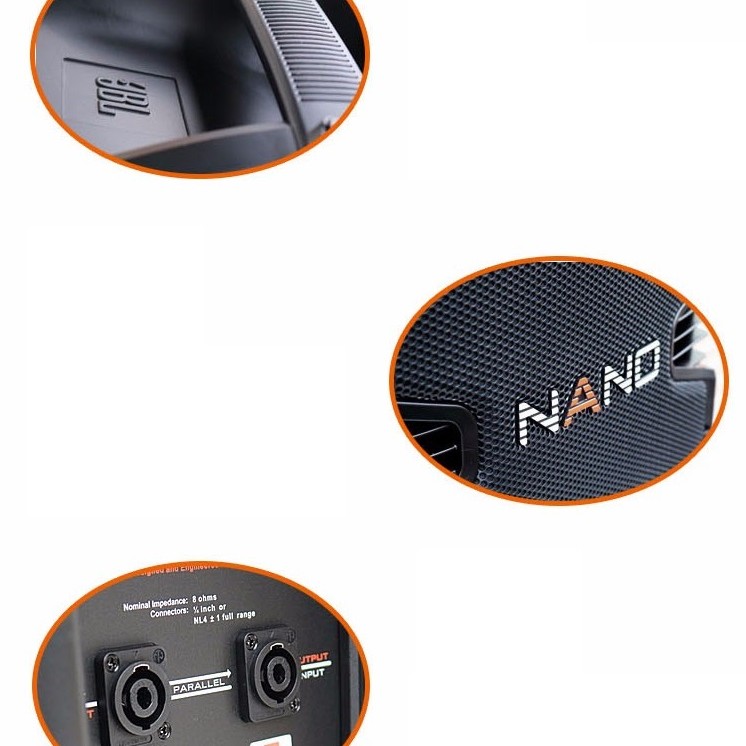

Input Connector Parallel Neutrik® NL4 / ¼” combo connectors

HF Protection SonicGuardTM Circuit

Enclosure PP impact copolymer, multi-purpose main & monitor orientation

Handles One left/right side, one on top

Suspension/Mounting 36 mm pole socket with stabilizing screw 4 × M10 suspension points, 1 × M10 pull-back point

Grille Power coated perforated steel with acoustically transparent black screen backing

Dimensions (H × W × D) 685 mm × 438 mm × 366 mm 27 inch × 17.3 inch × 14.4 inch

Net Weight 16 kg (35 lbs)
